Detail

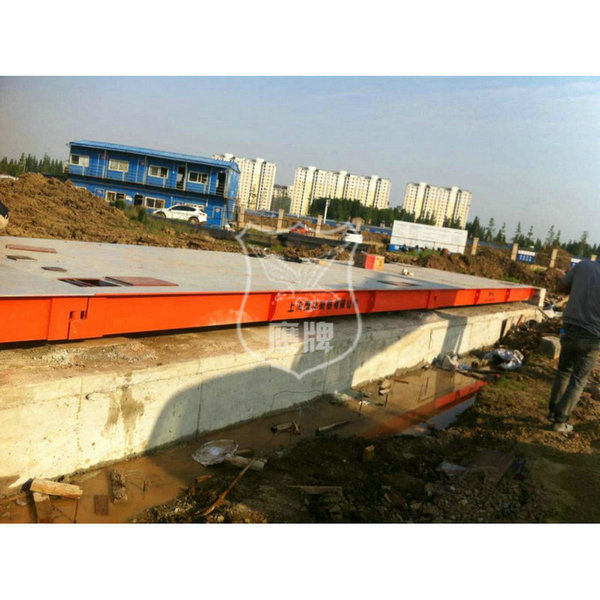

Product name：60 tons electronic wagon balance
Custom production: yes Brand: Yingpai brand Model: SCS Type: electronic
wagon balanceMaximum batch weighing: 60000(KG) Platform size: 300*1000(cm)
Division value20000(g)
Specification3X10米*60t
Material: carbon steel
Motor truck scale is also named as wagon balance. It is main weighing equipment for weighing of large cargos by mining plant and merchant. According to scale structure, it is divided into U-shape steel motor truck scale, box iron motor truck scale, joist steel iron motor truck scale, and reinforced concrete motor truck scale. According to sensor, it is divided into digital motor truck scale, analogous motor truck scale, full electronic motor truck scale.
Fittings of 60 tons wagon balance:
Key components: sensor, table-board, instrument, junction box, data line
Bearing and force transmitting structure
High precision weighing sensor
Printer: for printing of weighing data and sheet
Three colors alarm light
Large screen: for remote reading
Computer management system
.jpg)
Function and features:
U-shape section design, high rigidity;
Continuous welding, overall polishing;
Coating of epoxy anti-corrosive primer and acrylic polyurethane coating within 4 hours after shot blasting to improve acid resistance and protection capacity;
Operating condition and working environment of 60 tons wagon balance
>environment humidity
>working power supply
>operating ambient temperature, sensor:-20℃~+65℃
